Product Description
JYOTI HYDRO-MEMBRANE ET3017 is a high-performance synthetic membrane made of plasticised PVC manufactured by twin coloured co-extrusion method. This advanced geomembrane solution offers exceptional durability and waterproofing capabilities for demanding construction applications.
Typical Applications
JYOTI HYDRO-MEMBRANE ET3017 is ideal for use in the following critical infrastructure applications:
Tunnel Waterproofing
Provides reliable waterproofing for road, rail, and pedestrian tunnels in all geological conditions.
Structural Protection
Water exclusion and protection of below-ground structures against moisture penetration.
Containment Solutions
Sewage lining and canal lining applications where chemical resistance is required.
Building Foundations
Below ground building structures requiring durable waterproof membranes.
Key Advantages
Quality Certified
Manufactured in ISO 9001 Certified Plant with strict quality control measures.
High Standards Compliance
Superior mechanical properties in accordance with EN/DIN/BS/Indian Standards.
Visual Inspection
Signal layer shows damage and aids visual inspection on-site for quality assurance.
Mechanical Strength
High mechanical resistance and elasticity to withstand structural movements.
Longevity
Exceptional long life expectancy with resistance to aging and environmental factors.
Hydraulic Performance
Resistance to wash-out action and bursting at high water pressure.
Quality Joints
Double weld allows pressure testing of joints for guaranteed waterproofing.
Independent Movement
Loose laid to act independently of structural movement without compromising integrity.
Environmental Resistance
Resistance to swelling, root penetration, and bursting at high water pressure.

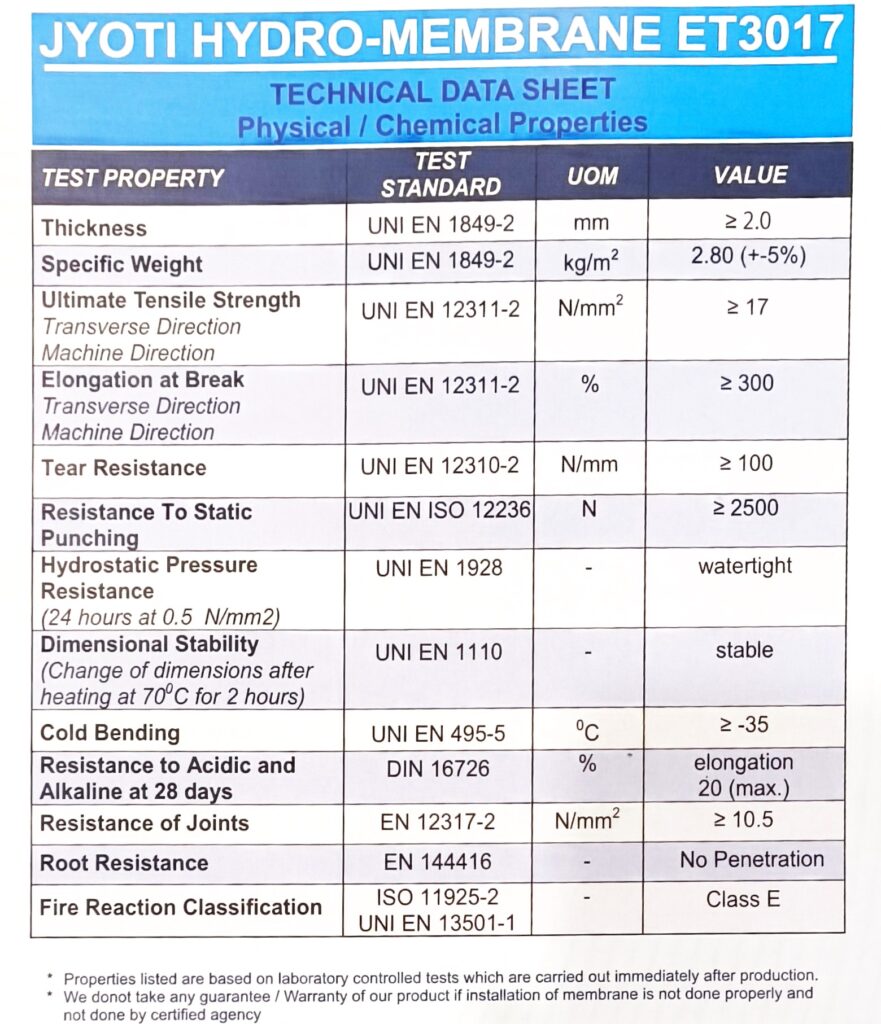

Technical Specifications
Standard Roll Sizes
| Thickness | Width | Length | Color |
|---|---|---|---|
| 1.5mm | 2.10m | 20m | Yellow/Black |
| 2.0mm | 2.10m | 20m | Yellow/Black |
| 2.5mm | 2.10m | 20m | Yellow/Black |
| 3.0mm | 2.10m | 20m | Yellow/Black |
Note: Custom lengths can be manufactured to suit specific project requirements. Please contact our technical team for special sizing requests.
Application Procedure
JYOTI HYDRO-MEMBRANE ET3017 requires professional installation for optimal performance:
Welding Method
Hot air or hot wedge welding achieves correct assembly of the geomembrane. This should be performed by certified specialist applicators.
Quality Control
The weldability and quality of on-site welding can be influenced by atmospheric conditions and membrane surface condition (must be clean and dry).
